HONEST · WIRELESS CONTROL

HT-9220KG

Control your pump. Save the extra trips.

Handheld remote switching and on-device control. A practical way to manage compatible irrigation equipment.

Choose a configuration for enquiry +Explore specifications See the application

Wireless remote switch · HT-9220KG series

HONEST HT-9220KG receiver, remote and external antenna

External-antenna configuration shown

75–265VAC operating supply

< 2000WPump / motor load¹

1000–5000mSeries open-area range²

2Ways to switch

¹ Motor and resistive load limits differ. ² Range depends on environment, obstacles and interference. See specifications and configuration notes below.

CONTROL IN CONTEXT

Stay with the work. Switch from where you are.

For irrigation and garden watering, a handheld switch puts compatible pump control within reach.

HT-9220KG irrigation application illustration — Application illustration. Product placement is not an installation guide.

Agricultural irrigation

Pump switching for everyday field work.

Water flowing into a vegetable field irrigation furrow

Garden watering

Control compatible watering equipment.

Equipment control

Explore compatible fans and aeration equipment.

Paddlewheel aerator working in an aquaculture pond

TWO WAYS TO CONTROL

In your hand. Or right on the receiver.

Separate on and off buttons

Use the matching handheld remote to switch equipment. The learning-code design supports pairing a compatible remote.

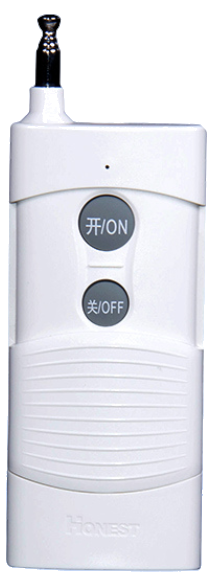

HT-9220KG compact remote — Compact remote

HT-9220KG long-body remote — Long-body remote

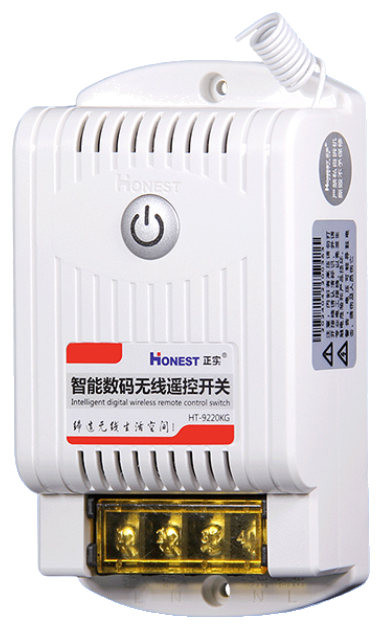

A button, right where you need it

When the remote is not nearby or its battery is depleted, operate the switch with the receiver’s own button.

HT-9220KG receiver with on-device power button

MORE REACH, FEWER TRIPS

A little distance. A lot more convenience.

The series offers 1000, 2000, 3000 and 5000 m open-area configurations. Choose by SKU; walls, terrain and radio interference can reduce actual range.

Extend the handheld antenna during use. Confirm the suitable receiver and antenna configuration for your site.

OPEN-AREA REFERENCE1000–5000m

●●

RemoteReceiver

Range varies by SKU and installation.

SELECT FOR THE LOAD

Different loads. Clearly defined limits.

75–265V

AC supply

Operating voltage range of the controller.

40A

Built-in relay

A component rating, not a universal motor-load rating.

5000W

Resistive load

Keep separate from the below-2000 W pump/motor limit.

Confirm the motor nameplate, starting current, supply and protection before selection. The wide supply range is not a voltage-stabilization function for connected equipment.

HT-9220KG · Product introduction video

Watch the product up close.

THE HT-9220KG SERIES

Choose your configuration.

Compare range, remote style and receiver antenna. Select a configuration to see its product image and details.

HT-9220KG

One series. Options for your site.

HT-9220KG-1

The 1000m configuration pairs the compact remote with a receiver-mounted helical antenna.

Open-area range: 1000m
Remote control: Compact remote · round ON/OFF buttons
Receiver antenna: On-device helical antenna

Range and USB charging follow the product list; remote style and antennas follow the matching catalog images. Compact-remote dimensions and battery specifications do not apply to the long-body or USB remotes.

Download selected product image ↓

PRODUCT SPECIFICATIONS

The details that matter.

HT-9220KG

Wireless remote switch

Base-model reference, from the supplied product detail sheet. Dimensions are approximate.

HONEST HT-9220KG receiver, handheld remote and external antenna

Control methods: Handheld remote + receiver button
Operating voltage: AC 75–265V
Pump / motor load: Below 2000W
Resistive load: 5000W
Built-in relay: 40A
Reference range: 1000–5000m across the series; see selected SKU
Pairing: Learning-code pairing
Receiver dimensions: 105 × 63 × 35mm
Compact remote dimensions: 90 × 40 × 15mm
Compact remote battery: 12V, type 23A
Warranty: One year; scope subject to sales terms

INSTALLATION & SUPPORT

A clear starting point.

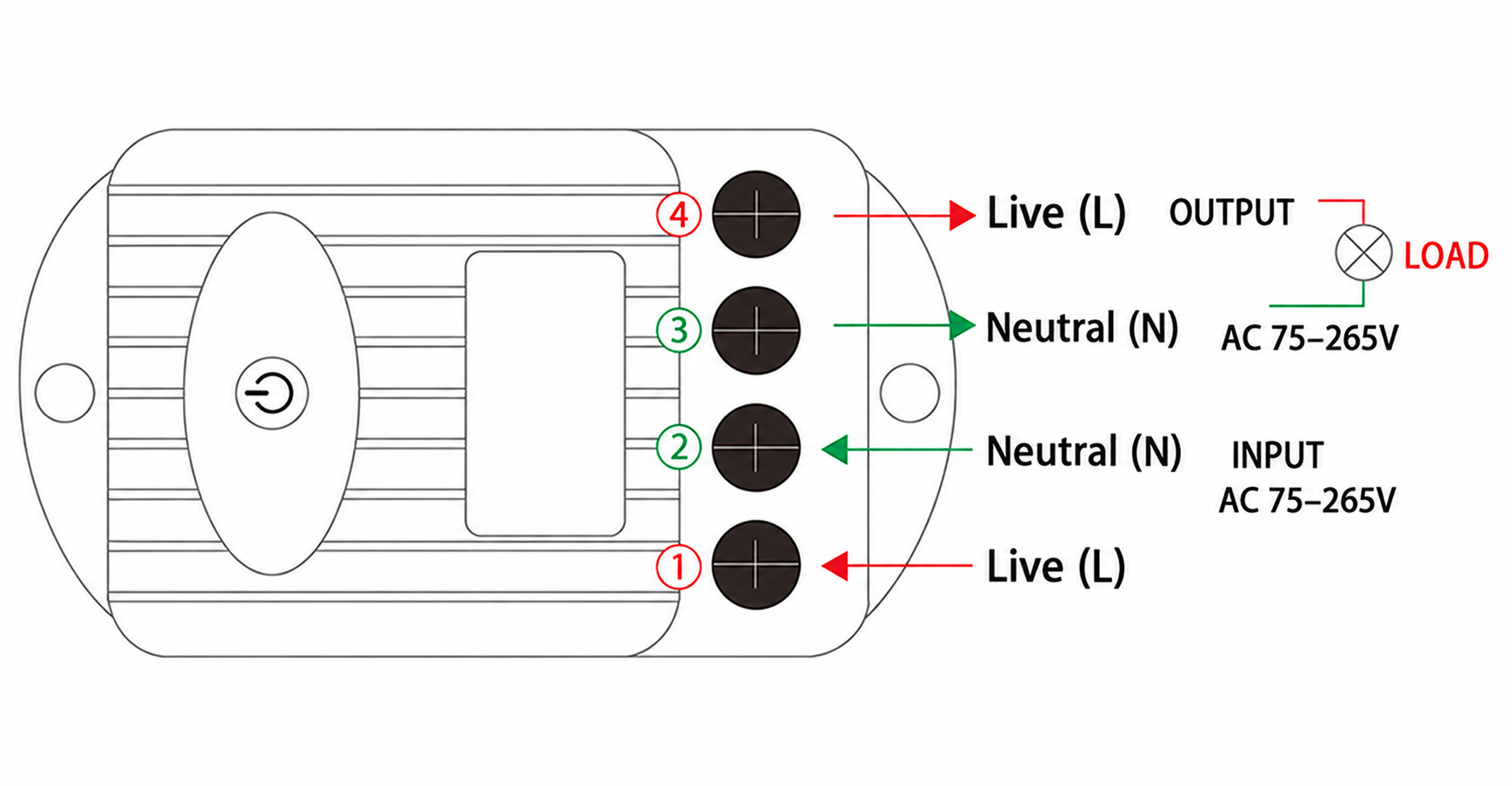

AC 220V wiring diagram

The sliding protective cover is marked (1), (2), (3) and (4).

① ② Supply in · ③ ④ Load out

Screw-terminal connections using a screwdriver.

HT-9220KG wiring: 1 live input, 2 neutral input, 3 neutral output, 4 live output; AC75–265V

Mains voltage. Isolate the supply before installation. Wiring must be completed by a qualified electrician following the markings on the actual unit. Do not open the housing.

Can I operate it without the remote?

Yes. The receiver has an on-device switch button for local control.

Will walls affect the range?

Yes. Obstacles attenuate radio signals. The series spans 1000–5000m in open areas depending on SKU; this is not a guaranteed distance through walls.

Can it control any 2000W appliance?

Select for the actual load type, nameplate and starting current. The supplied guide specifies pumps and motors below 2000W and resistive loads of 5000W separately.

Does this model offer App control?

This page describes handheld remote and on-device control. For App and WeChat operation, explore the HT-2401G mobile-control series and confirm local compatibility.

Which configuration should I choose?

Share your equipment nameplate, operating distance and installation environment. Confirm antenna, accessories and version-specific ratings before ordering.

LET’S FIND YOUR FIT

The right control. For your next project.

Prepare your pump specifications, market and control distance. Start a product-selection or distributor enquiry.
