Remote switching
Control across locations when the phone and device are connected, without the direct radio range limit of a handheld remote.
HT-9601 / 4G smart mobile control switch
Equipment on site.
Control in your hand.
HT-9601 combines phone-based switching, an LCD and ambient temperature and humidity sensing for everyday control, schedules and shared access.
4G
Remote phone control
LCD
Status & ambient readings
AC 36–400V
Operating voltage
1 year
Included overseas data
01 / HT-9601
From a single switch to daily management.
Bring everyday controls, on-site information and operating schedules together.
Manual control
SET, ON and OFF buttons keep basic operation accessible at the device.
Ambient sensing
Collect and display ambient temperature and humidity at the installation location.
Schedules & cycles
Set switching times and repeating tasks around your work.
Shared access
Share access using a device key to support team operation.
Power-loss SMS
Notify the main account of a power interruption to help identify supply issues.
02 / 4G
No on-site Wi-Fi required.
Connect over 4G.
The device uses a mobile network and is operated through a supported phone interface. Remote operation is not limited by point-to-point radio range; both the phone and device need available connectivity and service.
- 01Phone interface
Select the paired device on your phone, tap ON or OFF, or set a scheduled task.
- 024G mobile network
Commands travel over the internet and reach the device via 4G. No on-site Wi-Fi router is needed.
- 03HT-9601
The controller receives the command and switches its internal relay to carry out the requested action.
- 04Connected equipment
Start or stop compatible pumps, lights or other equipment through the installed circuit. Test switching before regular use.
4G
Overseas versions include one year of data and support power-loss SMS alerts. Provide your destination country and carrier information to confirm network and service suitability.
Photos and interfaces come from the original material; physical screen markings are retained.

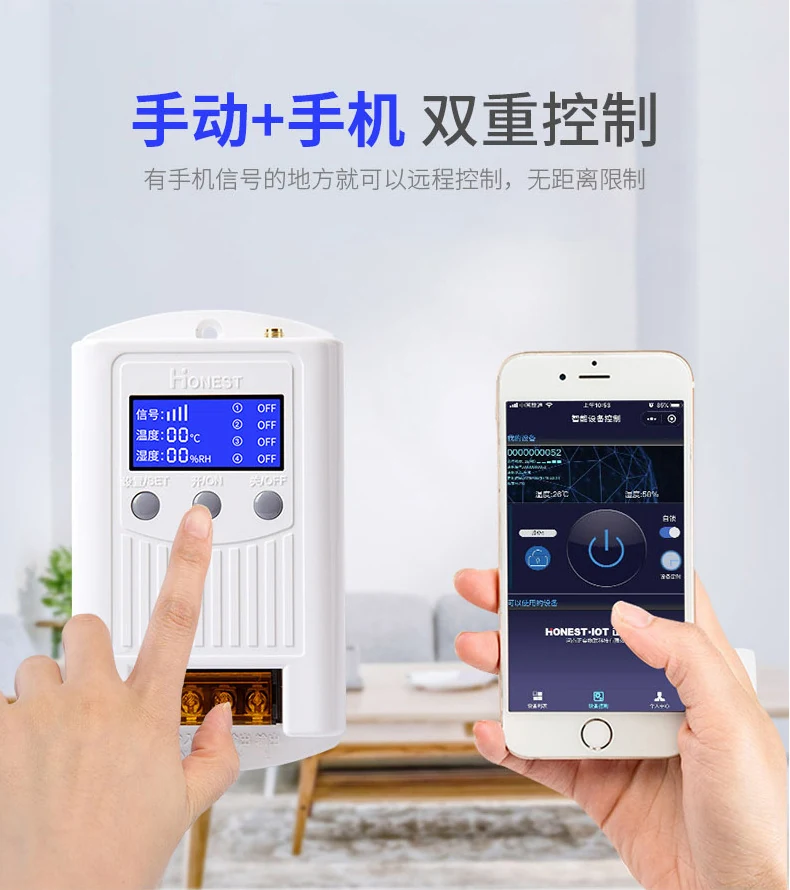

03 / LCD
Site information.
Visible at a glance.
The LCD brings signal, temperature, humidity and switch status together. Read information at the device and refer to collected ambient readings during remote management.
Ambient temperature / humidity
Standard ambient sensing; discuss customization for other sensors.
Local display & buttons
The LCD and SET, ON and OFF controls are grouped on the front.
RS485 communication
Discuss data integration, including the required interface, protocol and compatibility.
04 / Features
Give routine operations
a clear schedule.
Schedules & cycles
Arrange switching times and recurring tasks for compatible lighting, ventilation or equipment.
Shared operation
Add users with the device key so colleagues can manage from their own phones.
Power-loss alerts
Supports SMS notifications to the main account. Delivery remains dependent on carrier and network service.

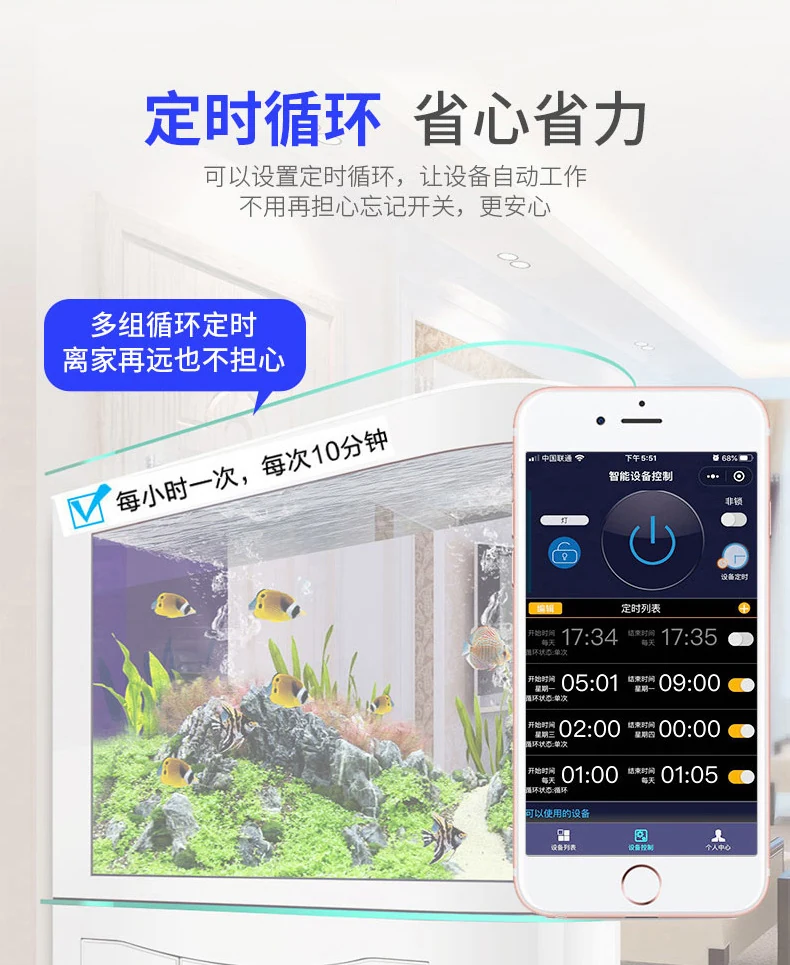

Original control interface · Scheduling
05 / HT-9601
Designed around connection,
operation and placement.

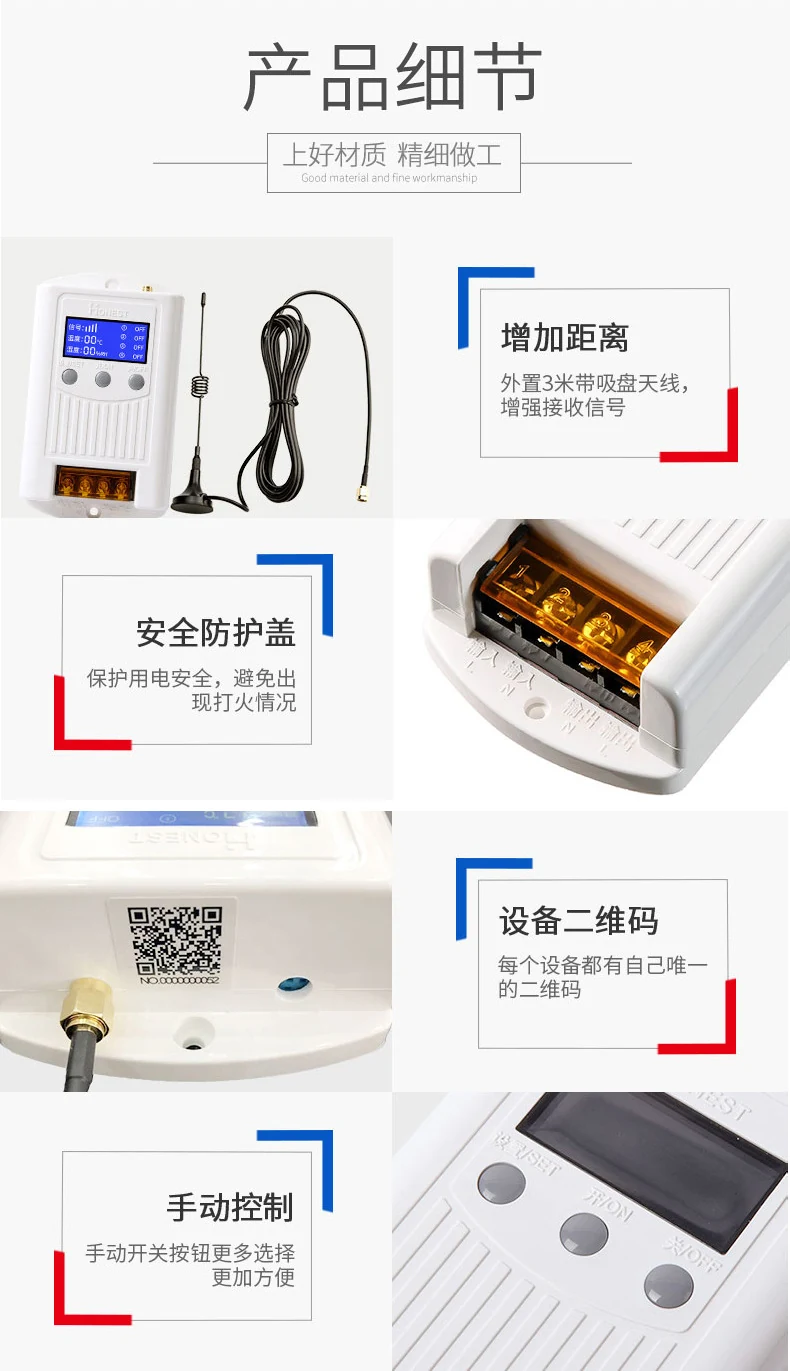

01
External antenna
A base-mounted antenna and approximately 3 m cable help you choose a suitable signal location.
02
Terminal cover
A transparent cover shields the terminal area while keeping connections visible.
03
Device QR code
Bind the device using its QR code during initial setup.
04
SET / ON / OFF buttons
Access basic settings and manual switching at the device.
06 / Applications
From irrigation to lighting.
Across everyday workplaces.
Choose a configuration for the load and installation conditions where remote switching and schedules are useful.
01
Agricultural irrigation
Manage a compatible pump while working in the field or away from the site.
02

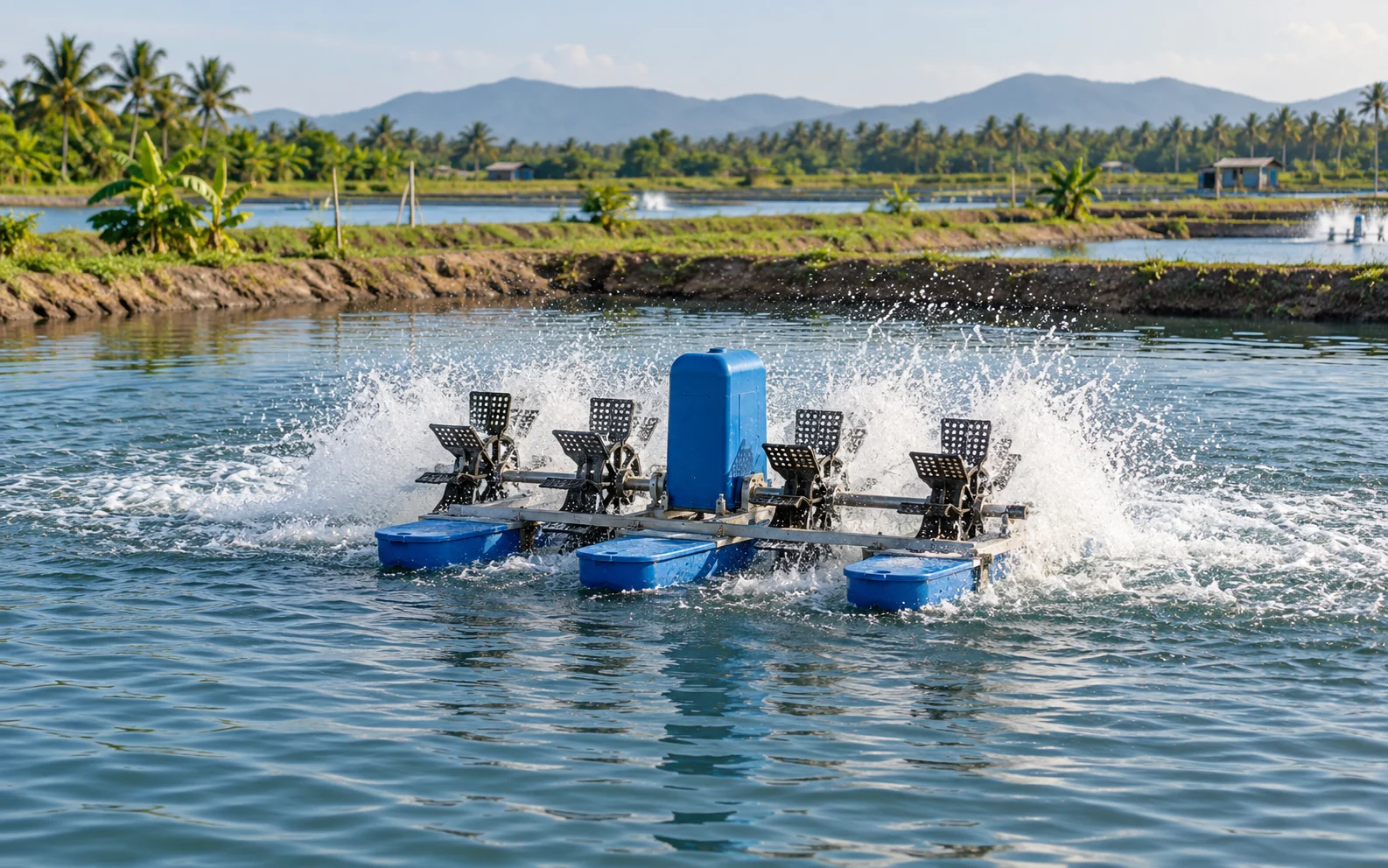

Aquaculture & aeration
Schedule compatible aeration equipment and monitor for supply interruptions.
03
Greenhouses & gardens
Check ambient readings and manage compatible ventilation or watering equipment.
04

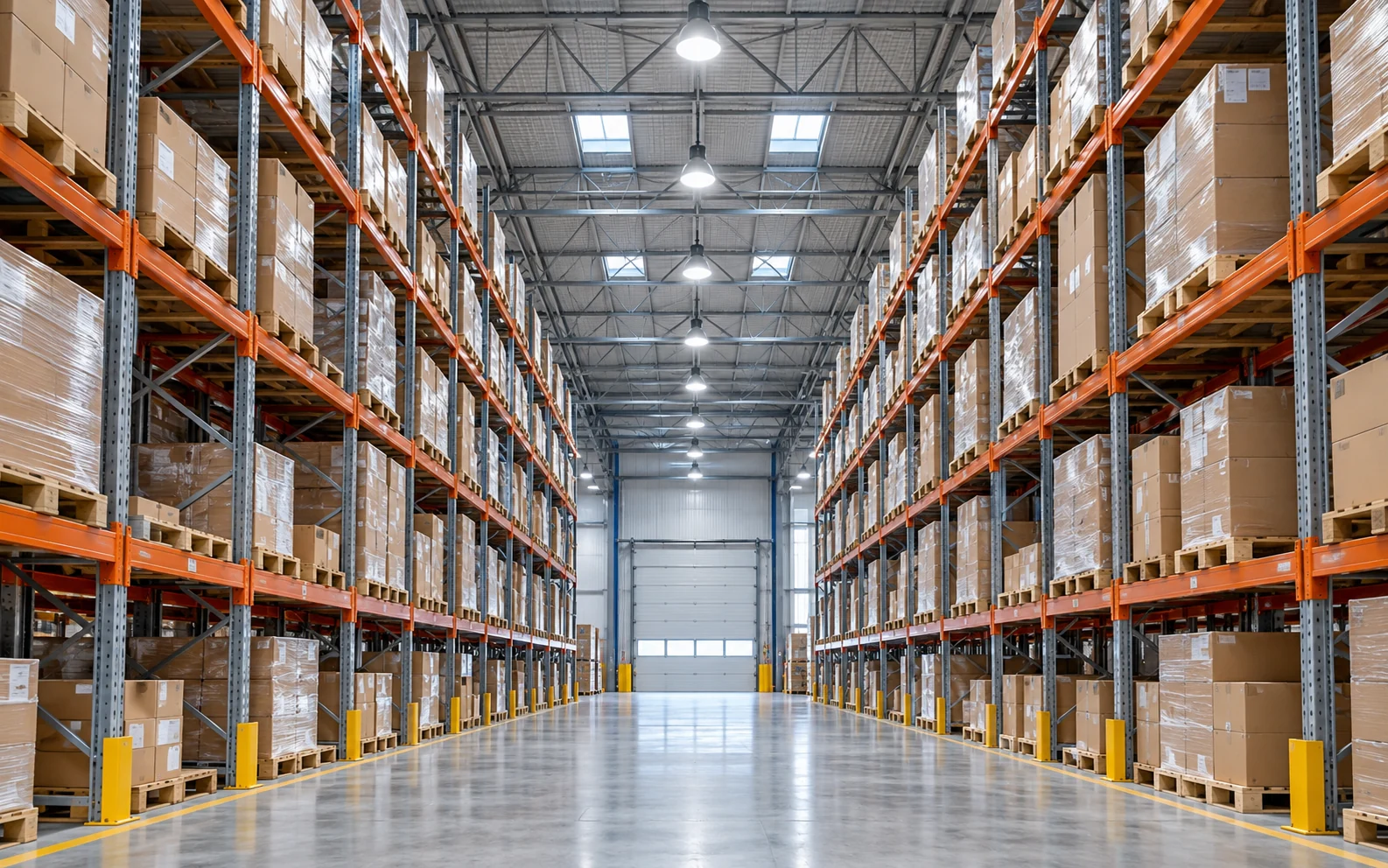

Industrial & warehouse lighting
Arrange lighting around shifts and reduce trips to switches.
05

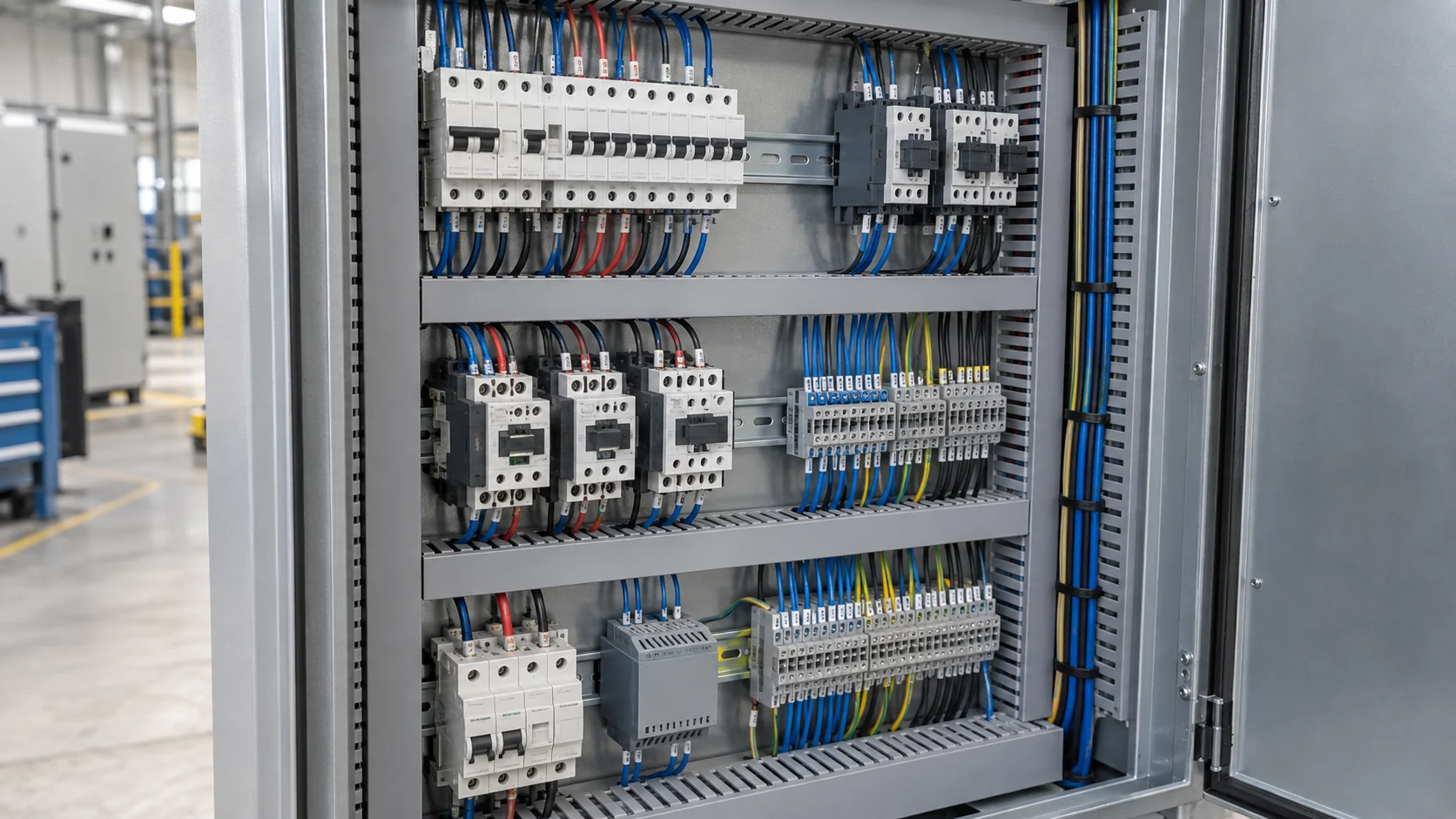

Panels & equipment control
Integrate with a suitable control circuit and contactor arrangement.
06

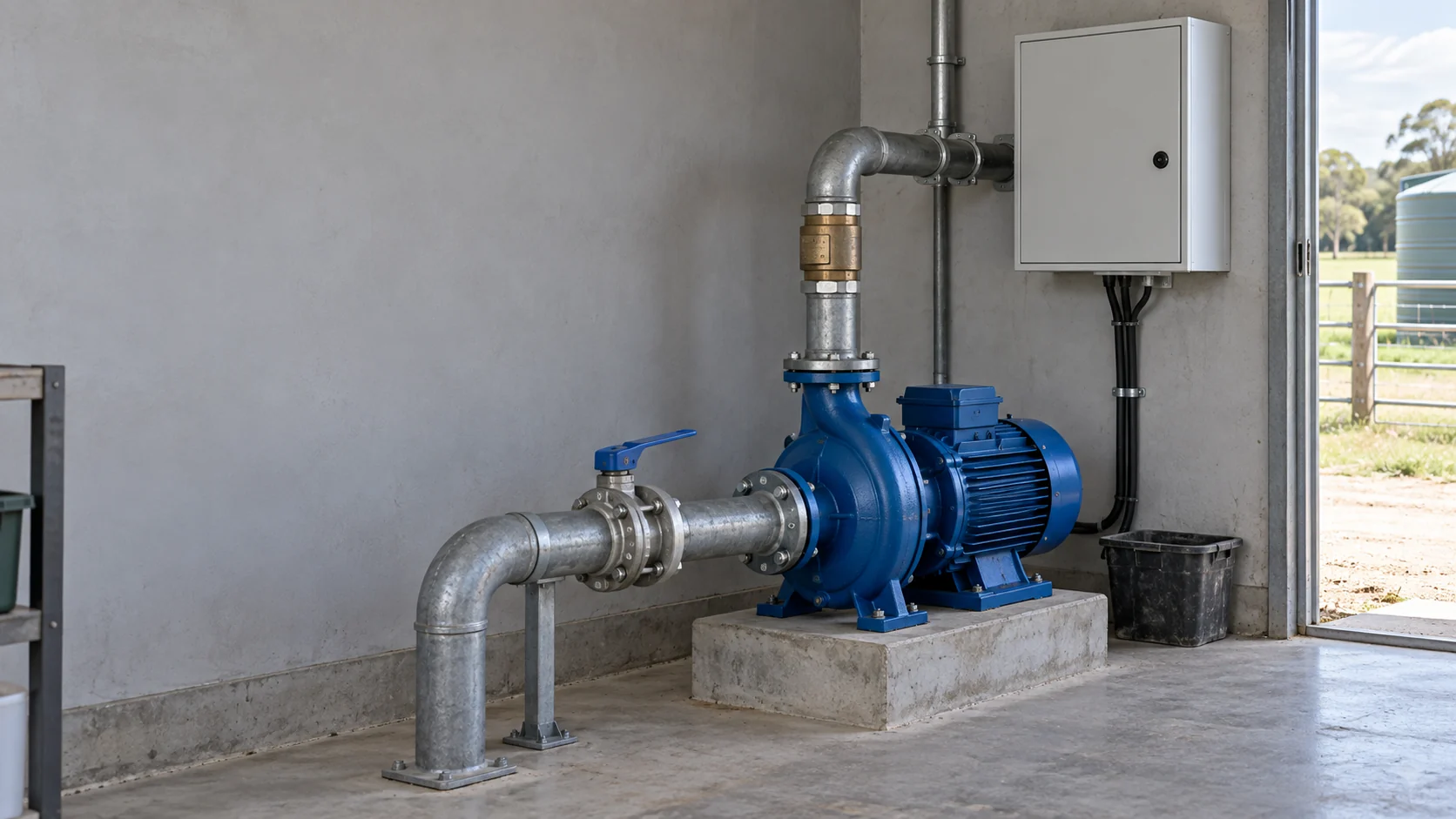

Tank & pool filling
Switch compatible pumps remotely; automatic water-level control requires a separate sensor and control solution.
07 / Setup
From device connection
to phone control.
Check network & wiring
Confirm supply, load and network version. Have a qualified installer follow the actual terminal markings.
Scan & bind
Open the supported interface, scan the device code and bind your account. The supplied domestic guide shows a WeChat Mini Program.
Test & configure
Test local and remote switching, then configure sharing, schedules and the SMS recipient account.
For overseas use, confirm the available app or control interface and account registration method.
08 / HT-9601

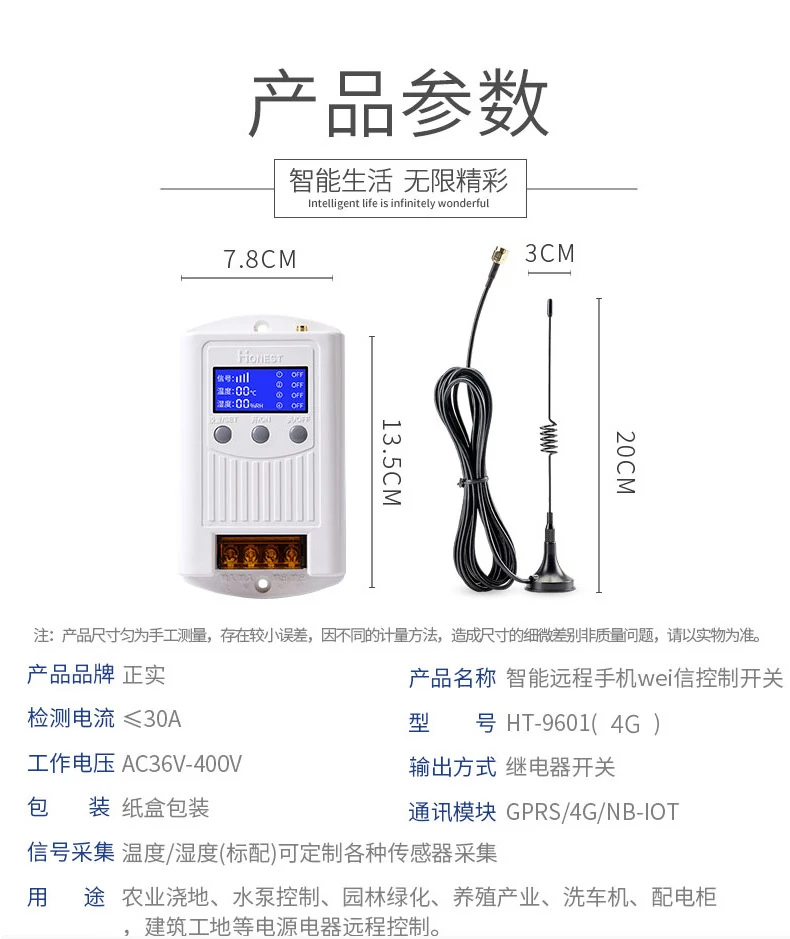

Know the parameters. Choose the configuration.
- Model
- HT-9601 (4G)
- Operating voltage
- AC 36–400V
- Output type
- Relay switching
- Power stated in source
- 5kW
- Detection current
- ≤30A
- Ambient sensing
- Temperature / humidity (standard)
- Operation
- Phone control + local buttons
- Control modes
- Latching / non-latching
- Timing
- Scheduled / cyclic switching
- Data communication
- RS485
- Reference housing size
- 13.5cm high × 7.8cm wide
- Antenna & cable
- Approx. 20cm antenna, 3cm base, 3m cable
5kW is the power stated in the supplied material; ≤30A is listed as “detection current”, not a universal switching capacity. Confirm motor starting current, contactors and protection for the actual equipment. Wide input voltage does not mean voltage conversion.
09 / FAQ
A clearer starting point.
Does the site need Wi-Fi?
The device connects through a mobile network and does not require an on-site router. Both phone and device need connectivity, and the device data plan and service must be active.
Can it be used overseas?
Discuss a suitable version for the destination. Overseas versions include one year of data and support power-loss SMS. Confirm local network, interface and account access.
Does sensing mean automatic climate control?
Standard features include ambient temperature and humidity collection and display. Sensor-triggered actions, thresholds and other automation require separate confirmation.
Does the multi-number display mean four outputs?
Output count cannot be inferred from the display artwork. This page covers HT-9601; ask about the appropriate model for two- or four-channel control.
Can it directly switch any 5kW pump?
Do not select by power alone. Check voltage, load type, starting current and protection, including whether a contactor is required.
Will timers and alerts work without a network?
Do not assume all functions work offline. Confirm how timers execute on the selected version; SMS alerts depend on communication conditions.
10 / OEM & ODM
A practical addition
to your product line.
For pump and irrigation dealers, electrical and hardware wholesalers, and lighting or equipment suppliers. Discuss versions, applications and packaging for your customers.
OEM / ODM
Discuss product and branding needs
Custom packaging
Confirm packaging for your project
One-year warranty
Lifetime repair service; confirm applicable terms
HT-9601
Tell us what you want to control.
Share the destination country, equipment nameplate, installation environment and control needs to discuss a suitable HT-9601 configuration.
