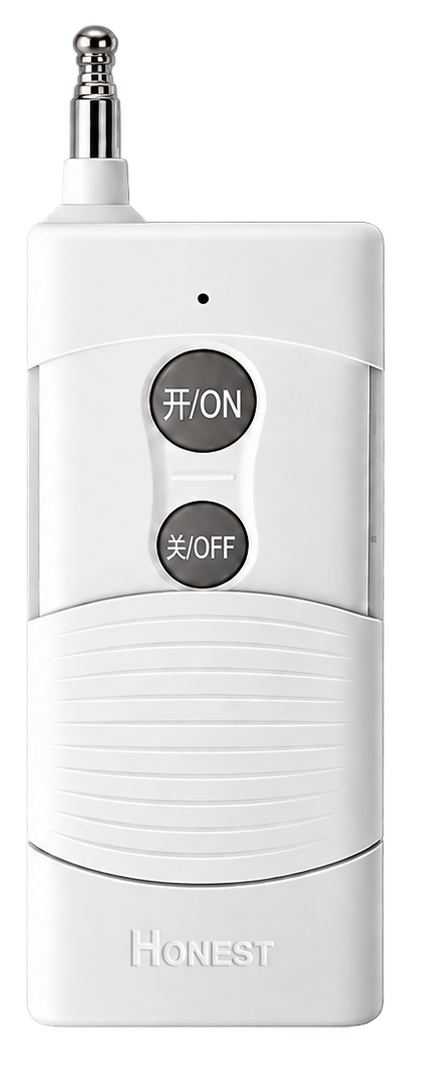

Separate ON and OFF buttons
Two clear buttons for everyday switching. The telescopic antenna and sliding cover make the remote easy to use and store.
HONEST · EVERYDAY CONTROL
HT-9501CZD
Settle in. Switch on.
A wireless remote socket for compatible lamps and plug-in appliances. Switch from your seat with the handheld remote, or use the button on the socket.
Chinese-standard plug and socket shown. Confirm compatibility for your market.
Wireless remote control socket1000mOpen-area reference¹
75–265VAC operating supply
2 waysRemote & local switching
Plug inNo rewiring required
¹ Up to 1000m in open areas. Walls, interference and installation conditions reduce the actual operating range.
TWO WAYS TO CONTROL
A simple touch. A more comfortable day.

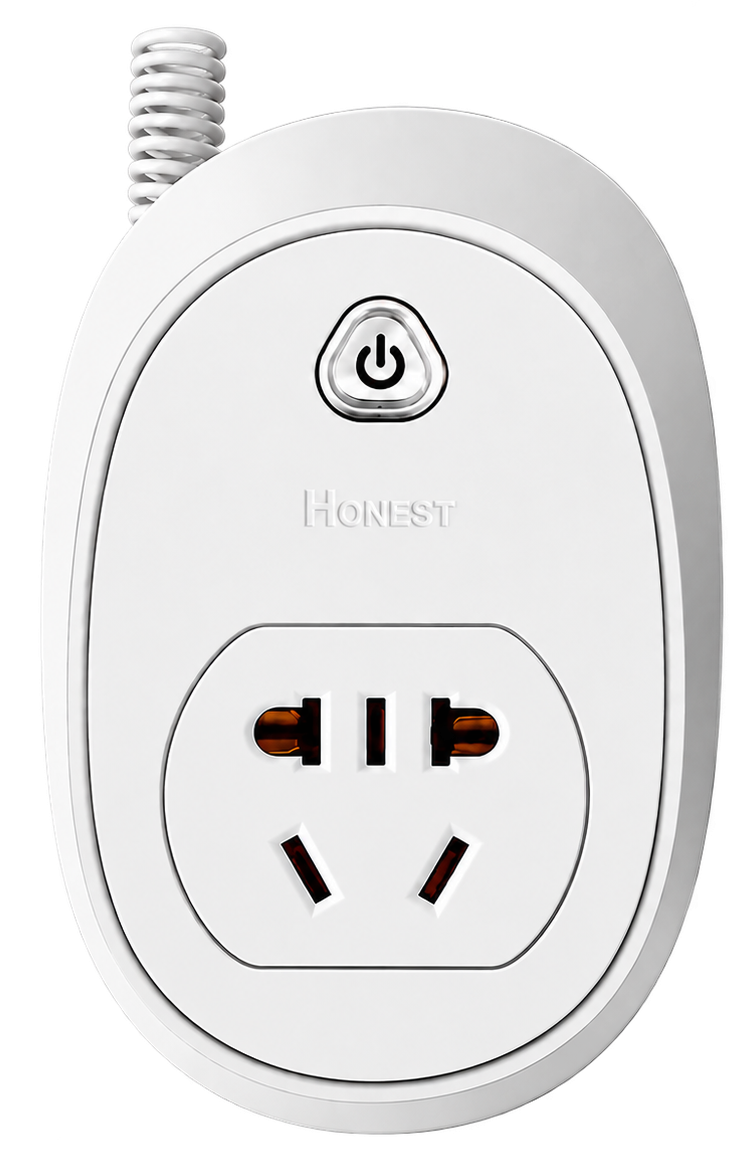

Control at the socket
Use the socket’s local button when the remote is not nearby. Plug compatible appliances directly into the outlet.

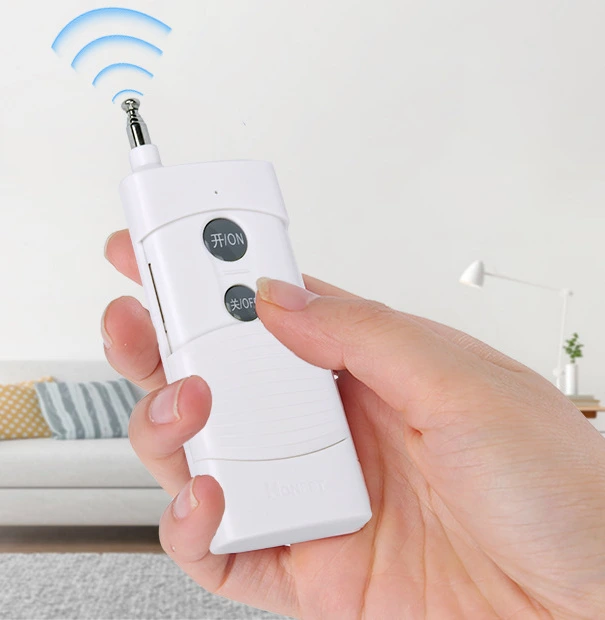

WIRELESS CONVENIENCE
Switch without pointing at the socket.
Radio control does not need the direct pointing used by an infrared remote. Operate compatible equipment from a convenient position within range.
Signals can pass through walls, but obstacles and interference reduce range. Test operation in the actual room or site.

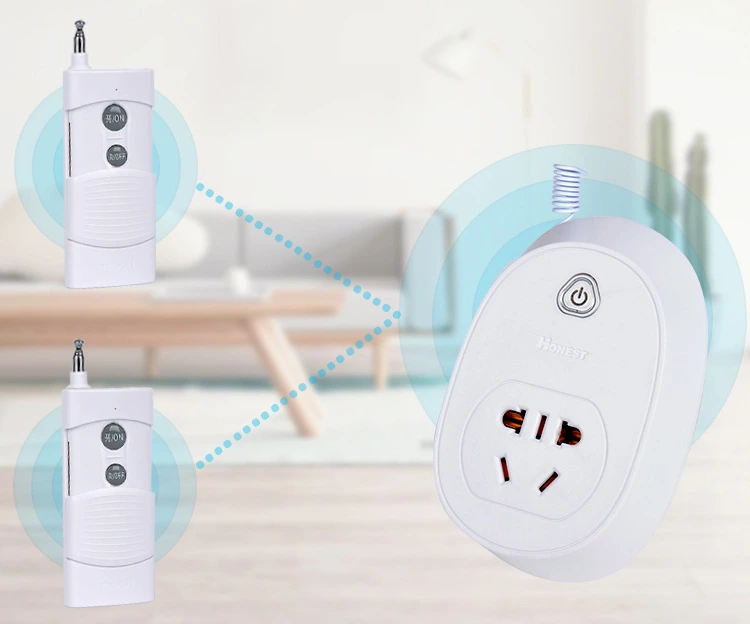

LEARNING-CODE PAIRING
One socket. More than one remote.
Learning-code pairing supports multiple matching remotes controlling one socket. Keep a remote where it is useful, and share everyday control with the people around you.
Follow the supplied instructions for pairing and clearing codes. Confirm the supported number of remotes and matching frequency before ordering.
AT HOME, WITH EASE
Small moments. A little more ease.
Table lamps
Switch a compatible plug-in lamp without reaching behind furniture.
Electric fans
Control power to compatible fans with a simple ON or OFF press.
Humidifiers
Make power switching easier for compatible plug-in humidifiers.
The socket switches power. Whether an appliance resumes operation after power is restored depends on that appliance’s own controls.
GET STARTED
Plug in. Pair. Make yourself comfortable.
Check compatibility
Match the wall socket, appliance plug, supply voltage and actual load. Use the markings and instructions supplied with your unit.
Connect the socket and appliance
With the appliance switched off, insert the receiver into a matching wall outlet, then connect the appliance securely. No fixed-wiring modification is needed.
Pair the matching remote
Install the specified remote battery and follow the supplied learning-code instructions. If your kit is already paired, check ON and OFF before use.
Test, then use every day
Test both remote and local switching with the appliance in view, then check reception from your usual operating position.
DESIGNED FOR EVERYDAY USE
The details you touch.

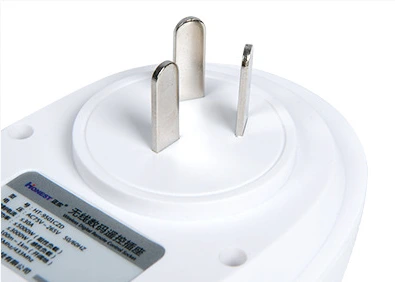

Match the plug to your market
Chinese-standard three-pin input and a five-hole outlet as pictured. Confirm the exact version before overseas sales.

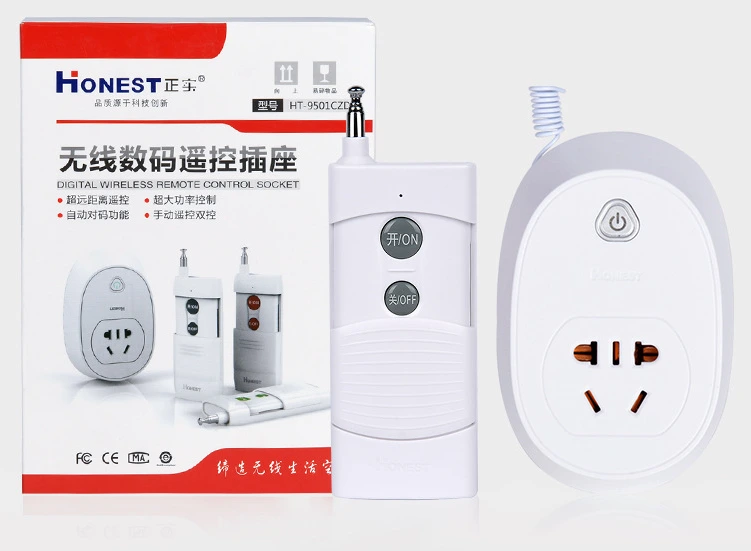

Ready for product presentation
The supplied photograph shows a retail box with the socket and handheld remote. Confirm included accessories and packaging when ordering.
HT-9501CZD · Product introduction video
Watch the product up close.
PRODUCT SPECIFICATIONS
The details, clearly.
HT-9501CZD
Wireless digital remote control socket
Also listed as HT-9501 in the product quotation. Dimensions below are approximate.
- Control
- Handheld remote + local button
- Operating supply
- AC 75–265V
- Open-area range
- Up to 1000m; affected by surroundings
- Relay
- 30A component rating
- Compatible pump load
- Below 1500W; confirm starting current and outlet rating
- Radio frequency
- 315MHz / 433MHz, according to version
- Pairing
- Learning code; multiple matching remotes per socket
- Socket dimensions
- Approx. 110 × 70mm (H × W)
- Remote dimensions
- Approx. 90 × 40mm (H × W)
- Operating temperature
- −20°C to 50°C
- Plug / outlet shown
- Chinese-standard three-pin / five-hole outlet
- Packaging
- Carton box
The relay’s 30A rating is not a universal plug, outlet or motor-load rating. Select for the complete unit’s markings, the load type and starting current.
SUPPORT & SELECTION
A clear answer. Before you plug in.
Find the right version
Share your country, appliance nameplate, plug type, required distance and quantity so we can help confirm the appropriate configuration.
Download product image ↓
Does this socket use an App or WeChat?
This model is documented for the matching handheld remote and local button. For phone control, ask about a dedicated mobile-control model.
Will it work through walls at 1000m?
1000m is an open-area reference. Wall materials, obstacles and interference can reduce the actual range; check the intended site.
Can one socket use several remotes?
Yes, learning-code pairing supports multiple matching remotes. Confirm their frequency and supported quantity, and follow the supplied pairing instructions.
Can any appliance connect?
Check the plug, supply and actual load. The quotation specifies compatible pumps below 1500W. Other appliances must meet the complete unit’s ratings; the relay rating alone does not establish compatibility.
Is 315MHz / 433MHz a dual-frequency feature?
The material lists both frequencies without identifying a dual-frequency mode. Confirm the supplied version and use matching remotes.
Can this pictured version be sold overseas?
Confirm the destination plug and socket standard, voltage and radio requirements before ordering. The pictured Chinese-standard version is not presented as universally compatible.
